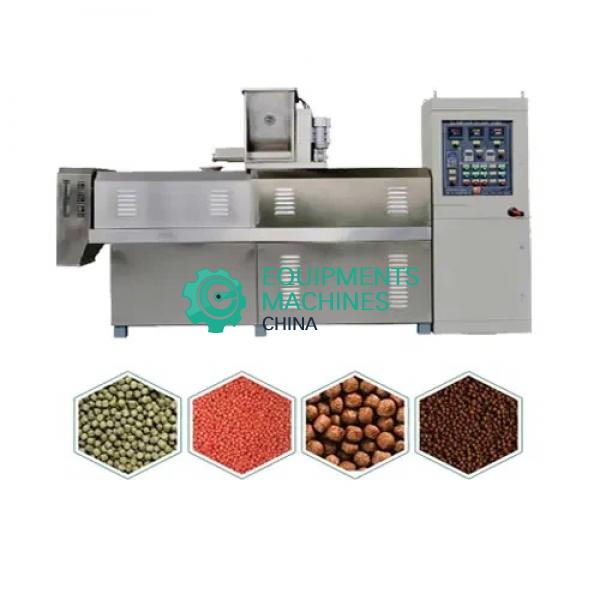

Aquatic Dry Floating Fish Feed Process Machinery
Specification
Our processing line adopt international advanced technology, the pellets size are very even.
we can adjust the cutter speed and the dies to get the different diameter and the length product
The Electric heating device system can control the temperature accurately
High temperature and high pressure can kill the salmonellosis andbacterial infections.
Aquatic Dry Floating Fish Feed Process Machinery Introduction:
The Aquatic Dry Floating Fish Feed Process Machinery utilizes twin-screw extrusion technology to produce nutritionally balanced, water-stable floating fish feed pellets. This advanced system ensures precise ingredient mixing, controlled expansion, and optimal nutrient retention, meeting the requirements of modern aquaculture for high digestibility, uniform size, and prolonged water stability.
Raw Material Handling Unit
Ingredient Pre-Mixer
Blends protein sources (fishmeal, soybean meal) with carbohydrates (wheat, corn)
Liquid additive system (oils, vitamins, binders)
Conditioner
Steam injection for moisture adjustment (25-35%)
| Zone |
Temperature |
Function |
| Feeding |
30-50°C |
Material intake |
| Compression |
80-100°C |
Protein denaturation |
| Cooking |
110-140°C |
Starch gelatinization |
| Melting |
90-120°C |
Lipid integration |
| Die Head |
70-90°C |
Pellet formation |
